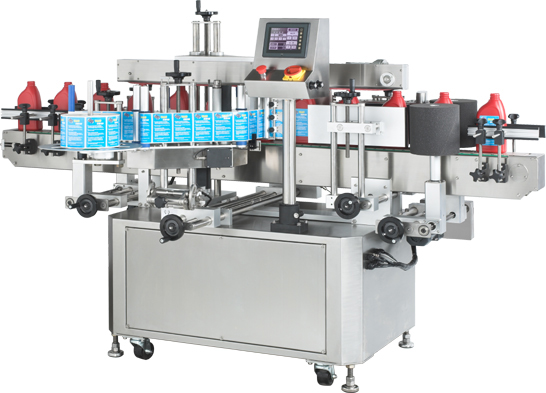

| AL611 |
One Side Plus Wrap Around Labeler |
|
| |
| AL611 One Side With Wrap Around Labeler uses self-adhesive label, can simultaneously label front and back of square, flat, round and ellipse bottles. Can also label on only one side. Especially it's just needs 20 second to become the complete Wrap Around Labeling mode and label the round bottle whole around or what you want. AL611 One Side With Wrap Around Labeler is manufactured in high quality control and setting the developed control system of AXUS design. Every system designs all achieve the best condition and the best stable in any environment. Even in the fast speed, the machine could remain exactly labeling, let your product show high quality sense to attract consumer's eyes and become the focus in the market. Anyone could not control oneself no buy your product. |
| |
|
|
| Application |
|
|
| Suitable for labeling plastic, glass and metallic or other material. |
 |
| Examples |
  |
| |
| Suitable Industry: Pharmaceutical / Medical, Biotechnology, Food, Beverage, Cosmetic, Chemical, Plastic...etc. |
|
| Specifications |
Labeling Speed |
Max. 250 bottles/minute (depends on the products) |
Labeling Drive |
Japanese 5-phase stepper motor |
Control Interface |
Japanese Fuji Touch Control Screen |
Max. Products Size |
One Side Mode: (W) 320mm × (D) 160mm × (H) 350mm
Wrap Around Mode: (Dia.) 100mm × (H) 260mm
(or design for requests) |
Min. Products Size |
One Side Mode: (W) 25mm × (D) 30mm × (H) 30mm
Wrap Around Mode: (Dia.) 40mm × (H) 40mm
(or design for requests) |
Spool Inner Diameter |
76mm (3") |
Spool Outer Diameter |
380mm Max. (15") |
Voltage Supply |
AC 110/220V 50/60Hz 1Phase |
Power |
1200W |
Dimension |
(L)2400mm × (W)1720mm × (H)1490mm |
Weigh |
Approx. 240kg |
Material |
Frame and main components are made from SUS#304 stainless steel and anodized aluminum. |
|
|
|
|
|
| |
|
|
| |
All specifications, design and characteristics shown on this catalogue are subject to change without prior notice. |
|
| |
|
|
| |
