| AL601 |
One Side Labeling Machine |
|
| |

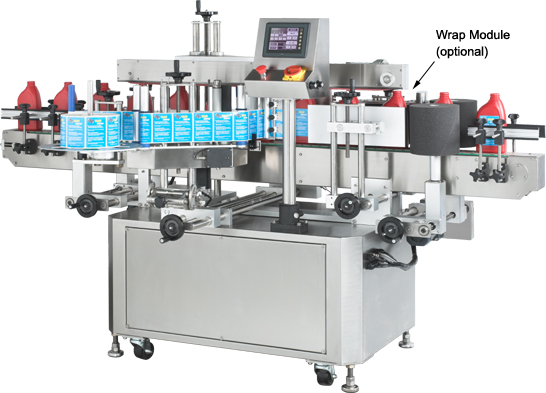

| AL601 One Side Labeling Machine uses self-adhesive label, can simultaneously label front and back of square, flat, round and ellipse bottles. Can also label on only one side. AL601 One Side Labeling Machine is manufactured in high quality control and setting the developed control system of AXUS design. Every system designs all achieve the best condition and the best stable in any environment. Even in the fast speed, the machine could remain exactly labeling, let your product show high quality sense to attract consumer's eyes and become the focus in the market. Anyone could not control oneself no buy your product. |
| |
|
|
| Application |
|
Suitable for labeling plastic, glass and metallic or other material. |
| |
| Special |
|
 |
| Examples |
 |
| |
| Suitable Industry: Pharmaceutical / Medical, Biotechnology, Food, Beverage, Cosmetic, Chemical, Plastic...etc. |
|
| Specifications |
Labeling Speed |
10~250 bpm (depends on the products) |
Labeling Drive |
Japanese 5-phase stepper motor |
Control Interface |
Japanese Fuji Touch Control Screen |
Max. Products Size |
(W) 320mm × (D) 160mm × (H) 350mm (or design for requests) |
Min. Products Size |
(W) 25mm × (D) 30mm × (H) 30mm (or design for requests) |
Max. Label Size |
(W) 320mm × (H) 150mm (or design for requests) |
Min. Label Size |
(W) 15mm × (H) 15mm (or design for requests) |
Spool Inner Diameter |
76mm (3") |
Spool Outer Diameter |
380mm Max. (15") |
Voltage Supply |
AC 110/220V 50/60Hz 1Phase |
Power |
900W |
Dimension |
(L)2400mm × (W)1720mm × (H)1490mm |
Weigh |
Approx. 200kg |
Material |
Frame and main components are made from SUS#304 stainless steel and anodized aluminum. |
|
|
|
|
|
| |
|
|
| |
All specifications, design and characteristics shown on this catalogue are subject to change without prior notice. |
|
| |
|
|
| |
